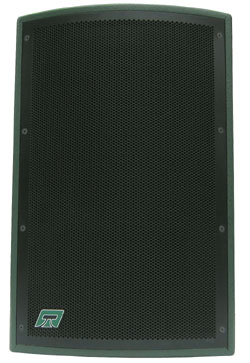

The CX112 is a multi purpose compact speaker designed for use in mid size, band, conference install and monitoring situations.

Its size makes it idealy suited for low visual impact work, its light weight ((common neodymium magnet system for both drive units) makes it a breeze for “one man” jobs in the hire sector.

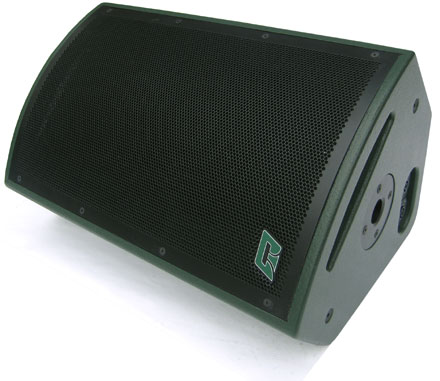

The asymetrical angled sides of the box give it the ability to be utilised a near or medium field monitor as well as being able to tuck neatly into a corner for installs.

With excellent frequency response from 60 to 20kHz it can be used alone for speech or is well suited to be used above the SB18 sub bass unit to give full frequency music reproduction.

The 700W programme power and highly efficient HF driver mean this cabinet can produce a suprising amount of SPL. The coaxial configuration ensures great point source clarity in voice reproduction.

Built into the box are multiple hanging points, a four point “Powerdrive” compatible mounting plate for wallmounting and a “top hat” for pole mounting .

High build quality is essential of any speaker cabinet to ensure that the cabinet itself does not vibrate and soak up potential energy that could be delivered as intended out of the front of the box. The CX112 is no exception and is built entirely by hand in our workshop utilising 15mm birch ply and extensively routed glued and screwed throughout.














FEATURES
highly efficient
good sound presure levels
superb clarity
ultra compact size and weight
stack stand fly ability
hand crafted

APPLICATIONS:
• indoor / outdoor
• install / event / conference
• front of house / monitor
• club and venue

PERMANENT INSTALLATION IN:
• auditoriums
• theatres
• clubs and bars
• places of worship




TECHNICAL SPECIFICATION:
Type COAXIAL - MULTI PURPOSE PASSIVE
Frequency response 60HZ- 20kHz
Driver

12"(300mm) + 1.4"(36mm) Coaxial neodymium

LF 4" Edgewound aluminium ribbon

Power rating 350W AES 700W Program
Recommended
amplifier
400w @ 8ohm
Sensitivity LF 98dB HF 105dB
Maximum SPL 125dB
Nominal
impendence
8 ohms
Dispersion 90 degrees
Crossover
points
80Hz + 2kHz
Connectors 3 x Speakon NL4

DIMENSIONS:
Height 600mm
Width 390mm
Depth 390mm
Weight 21kg

CONTRUCTION:
15mm Birch Ply
Finished in textured water resistant
Noise Control Audio Green
powder coated protective grill
